P47 - Pilot's Manual - Operating Tables

Postby RAF_DaddyO » Fri Feb 12, 2021 10:30 pm

S! Hey you Jug-jockies out there! Shutter, this is for you.

I have an old paper copy of the P47 pilot's manual. (its a little old and has some water damage to it, but...hopefully you can make use of the downloaded images)
If not, let me know, i can scan to pdf and post on our downloads site.

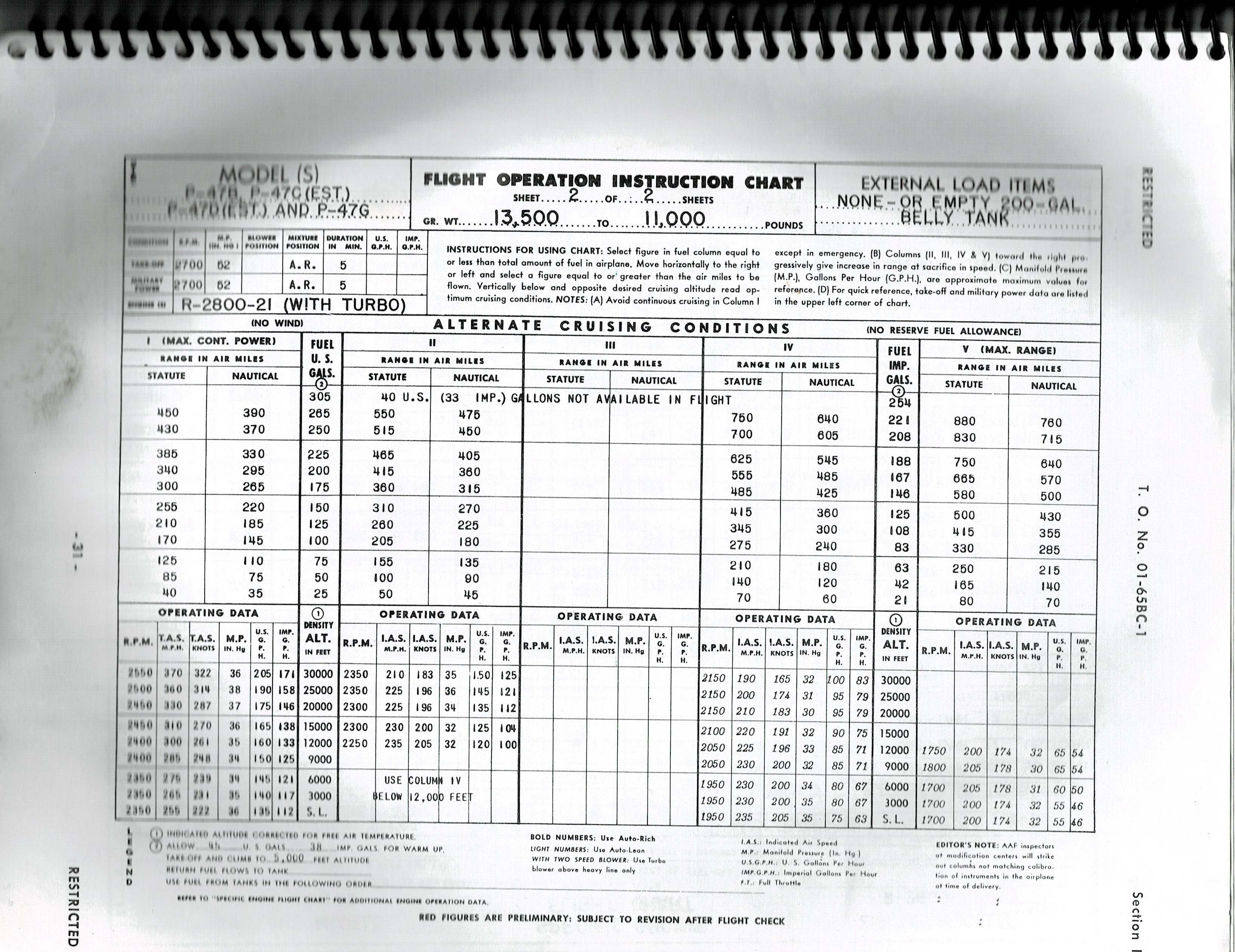

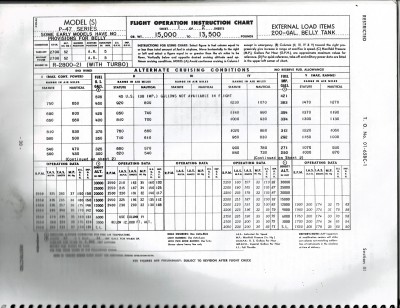

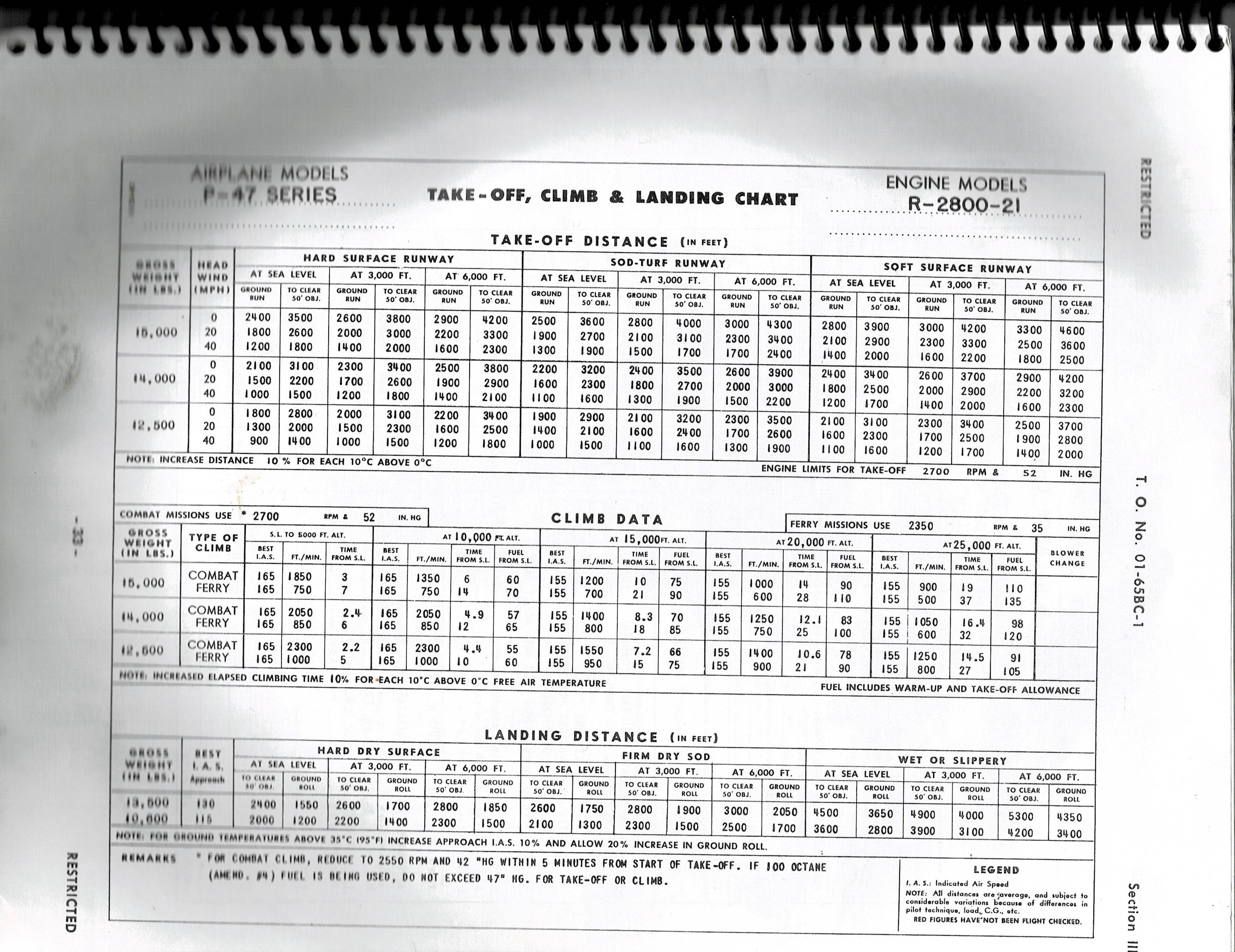

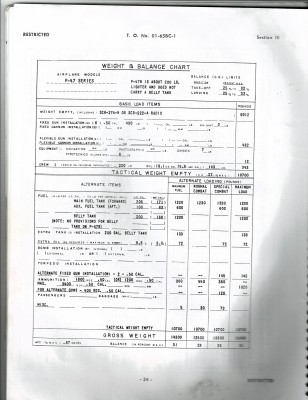

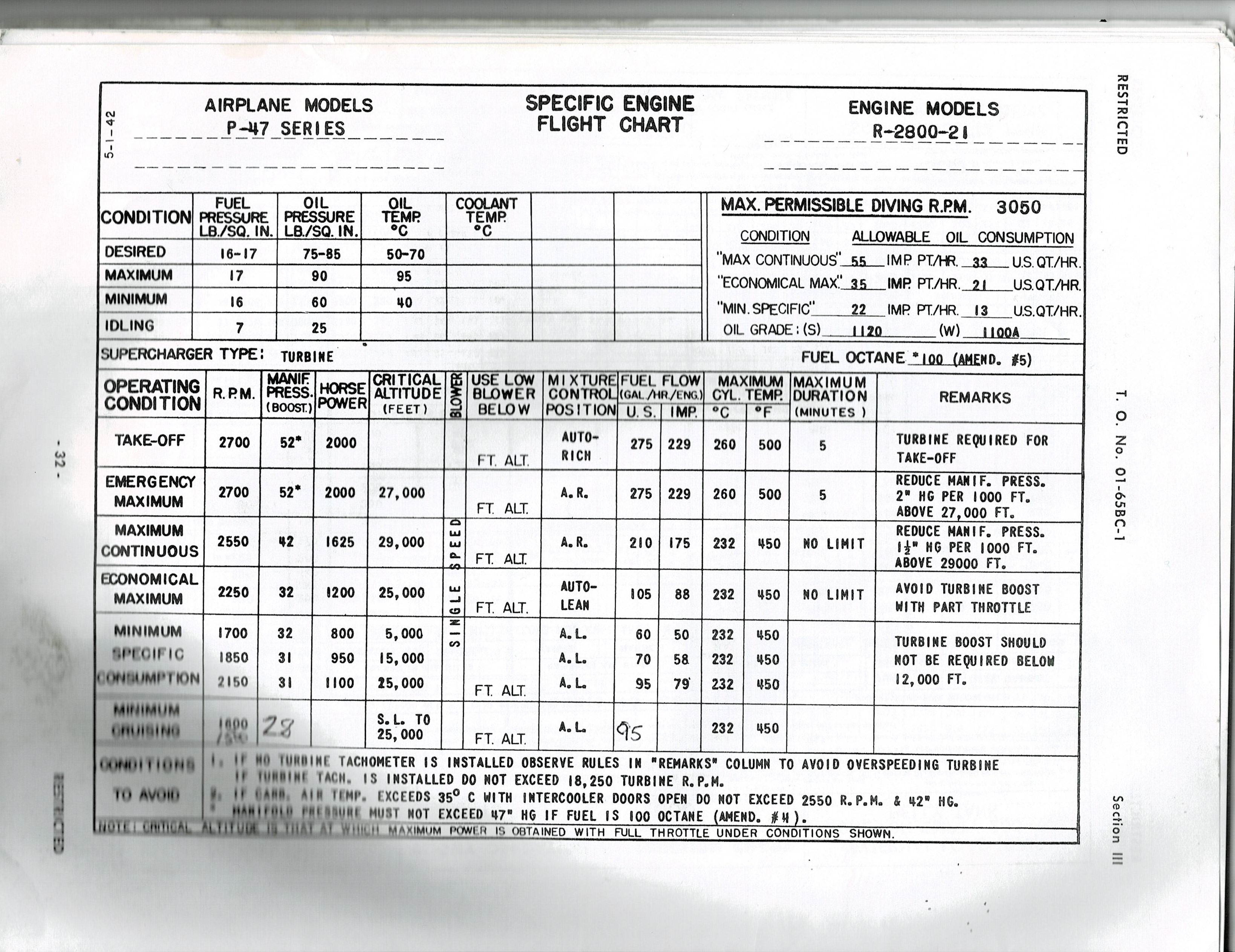

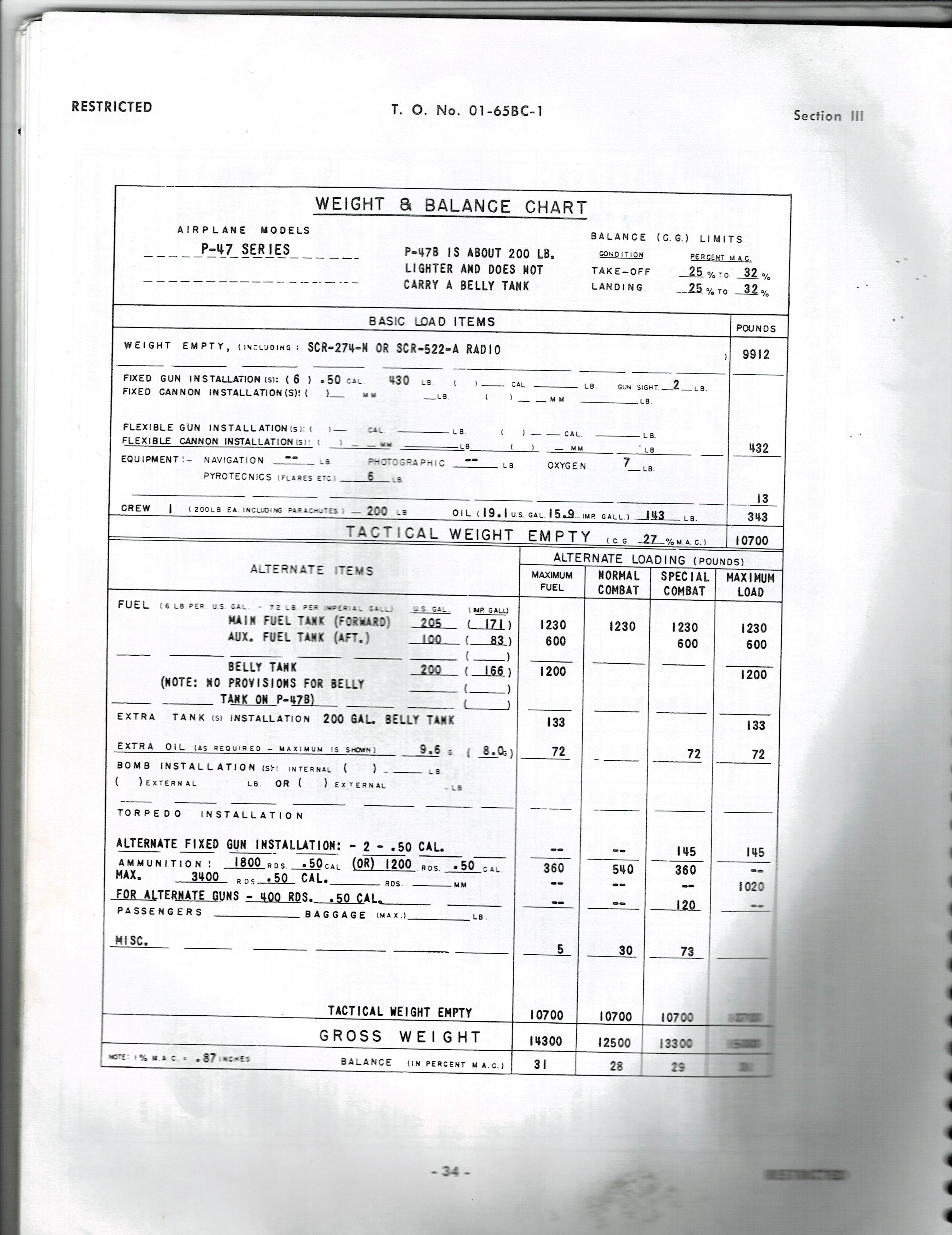

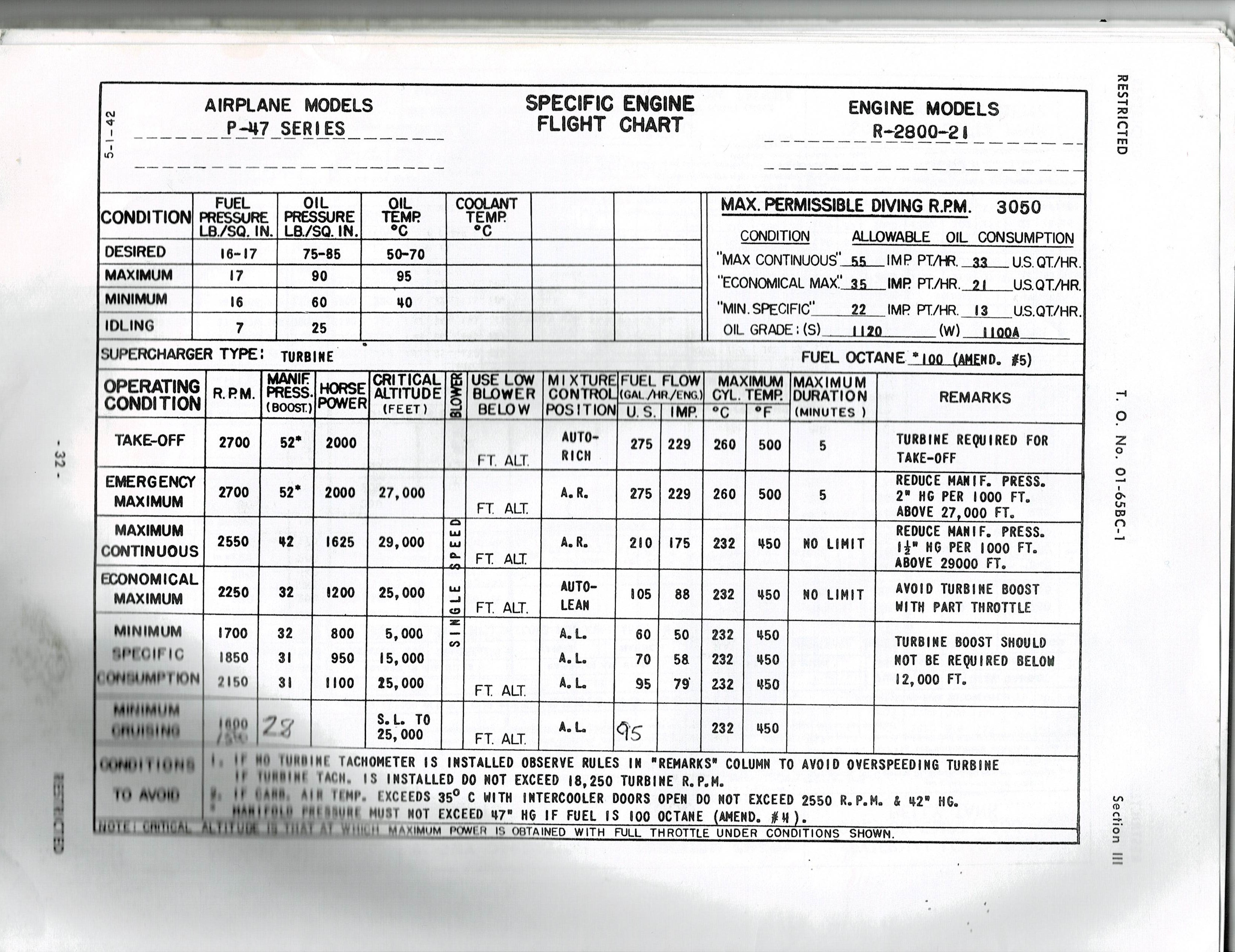

Please see the attached - I've photo copied the key operating parameter, weight and balance, and fuel consumption tables!

So you can plan your combat accordingly, and fly the jug to its limits.
S! Enjoy!
DDO
RAF_DaddyO
RAF662 CFSG C-in-C

User avatar
RAF_Shutter
Posts: 7
Joined: Sun Feb 14, 2021 8:49 pm
Contact:

Re: P47 - Pilot's Manual - Operating Tables

Postby RAF_Shutter » Sun Feb 14, 2021 10:24 pm

Useful... Thank you DaddyO ! :D
User avatar
RAF_Shutter
Posts: 7
Joined: Sun Feb 14, 2021 8:49 pm
Contact:

Re: P47 - Pilot's Manual - Operating Tables

Postby RAF_Shutter » Mon Feb 15, 2021 1:25 am

Looking around for magvar data, I have found this: https://maps.ngdc.noaa.gov/viewers/hist ... clination/. It seems that it is indeed 9W in the Dover area. The 12W i had was either an average for the UK or for a westerly location. I need to test the map again with more accuracy.

Today (or yesterday) you got a glimpse into dead reckoning navigation and what made it so hard. So many things to account for. Imagine crossing the Atlantic this way.
